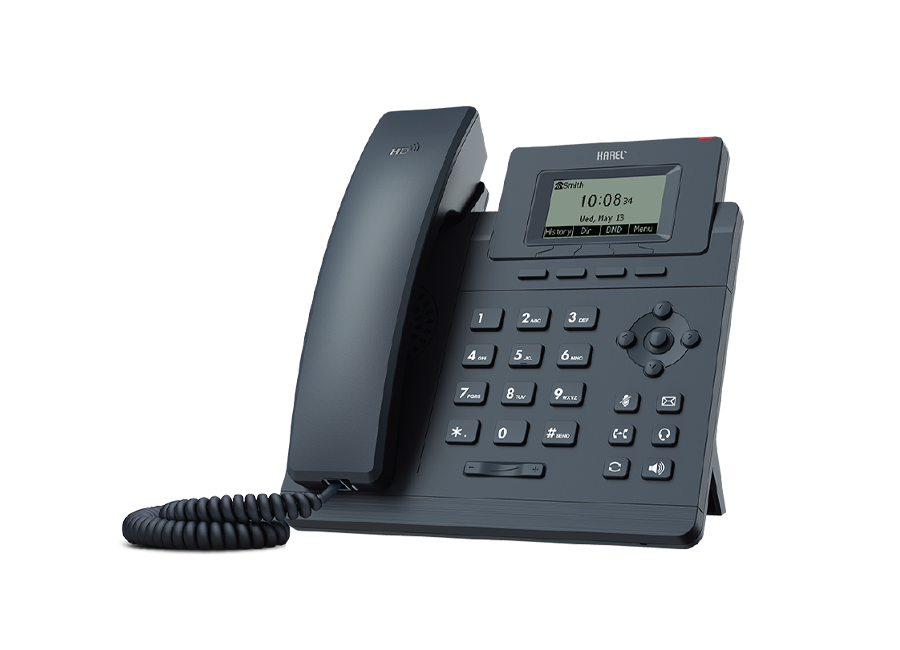

IP310P IP Phone

image title

IP310P IP Phone

The Karel IP310P is a PoE IP phone model with HD voice support and a VoIP account can be defined. Thanks to PoE (Power over Ethernet) support, it can operate without the need for a power adapter, only via Ethernet cable. Its 2.3-inch graphic LCD display has a resolution of 132x64 pixels. With Karel IP310P, you can use standard phone features such as call waiting, do not disturb, one-touch speed dialing and mute, and you can perform five-way conferencing.

  • Features

    • Audio Features

      • HD voice: HD handset, HD speaker

      • Smart Noise Filtering

      • Wideband codec: Opus, G.722

      • Narrowband codec: G.711(A/µ), G.723.1, G.729AB, G.726, iLBC

      • DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO

      • Full-duplex hands-free speakerphone with AEC

      • VAD, CNG, AEC, PLC, AJB, AGC

      Phone Features

      • One VoIP account

      • Call hold, mute, DND

      • One-touch speed dial, hotline

      • Call forward, call waiting, call transfer

      • Group listening, SMS, emergency call

      • Redial, call return, auto answer

      • Local 5-way conferencing

      • Direct IP call without SIP proxy

      • Ring tone selection/import/delete

      • Set date time manually or automatically

      • Dial plan

      • XML Browser, action URL/URI

      • Integrated screenshots

      • RTCP-XR, VQ-RTCPXR

      • Enhanced DSS Key

      Directory

      • Local phonebook up to 1000 entries

      • Black list

      • XML/LDAP remote phonebook

      • Smart dialing

      • Phonebook search/import/export

      • Call history: dialed/received/missed/forwarded

      IP-PBX Features

      • Anonymous call, anonymous call rejection

      • Hot-desking, voice mail

      • Flexible seating

      • Call park, call pickup

      • Executive and Assistant

      • Centralized call recording

      • Visual voice mail

      • Call recording

      Display and Indicator

      • 2.3” 132x64-pixel graphical LCD

      • LED for call and message waiting indication

      • Intuitive user interface with icons and soft keys

      • Multilingual user interface

      • Caller ID with name and number

      • Power saving

      Feature Keys

      • 6 features keys: transfer, message, headset, redial, mute, hands-free speakerphone

      • 5 navigation keys

      • Volume control keys

  • Technical Features

    • Interface

      • 2 x RJ45 10/100M Ethernet ports

      • Power over Ethernet (IEEE 802.3af), class 2

      • 1 x RJ9 (4P4C) handset port

      • 1 x RJ9 (4P4C) headset port

      Other Physical Features

      • Wall mountable

      • External AC adapter AC 100~240V input and DC 5V/600mA output

      • Power consumption (PSU): 2-3W

      • Power consumption (PoE): 3-4W

      • Dimension (W*D*H*T): 185mm*189mm*162mm*50mm

      • Operating humidity: 10~95%

      • Operating temperature: -10~50°C

      Management

      • Configuration: browser/phone/ auto-provision

      • Auto provision via FTP/ TFTP/HTTP/HTTPS for mass deploy

      • Auto-provision with PnP

      • Zero-sp-touch, TR-069

      • Phone lock for personal privacy protection

      • Reset to factory, reboot

      • Package tracing export, system log

      Network and Security

      • SIP v1 (RFC2543), v2 (RFC3261)

      • Call server redundancy supported

      • NAT traversal: STUN mode

      • Proxy mode and peer-to-peer SIP link mode

      • IP assignment: static/DHCP

      • HTTP/HTTPS web server

      • Time and date synchronization using SNTP

      • UDP/TCP/DNS-SRV (RFC 3263)

      • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP

      • SRTP for voice

      • Transport Layer Security (TLS)

      • HTTPS certificate manager

      • AES encryption for configuration file

      • Digest authentication

      • OpenVPN, IEEE802.1X

      • IPv6

      • LLDP/CDP/DHCP VLAN

      • ICE
